Services
Construction Drawings
CDS is specializing in high-end Manhattan construction residential projects. Working for GC’s we are providing detailed plans, elevations, sections, RCP’s, MEP’s, stairs, millwork and stone drawings

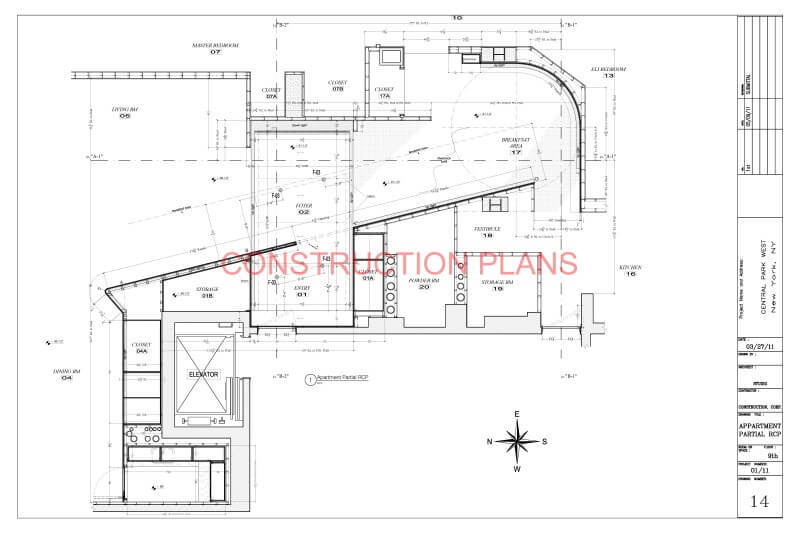

Construction plan layout drawings
Plans
![Entry, Foyer, Breakfast Rm, Dining & Living Rm_Page_02 ARCHITECTURAL DETAILS](https://cdstech.us/newsite/wp-content/uploads/2022/11/Entry-Foyer-Breakfast-Rm-Dining-Living-Rm_Page_02-1.jpg)

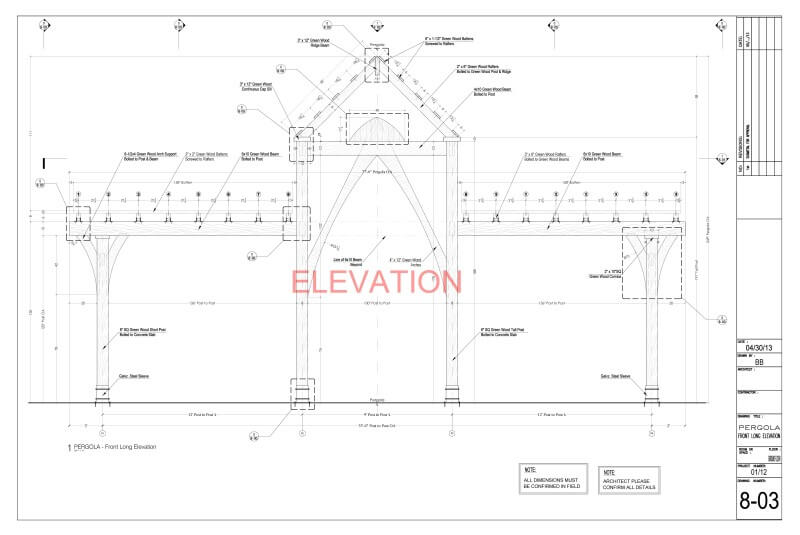

ELEVATIONS AND SECTIONS DRAWINGS
Elevations/Sections
![Pergola_Page_2 RCP](https://cdstech.us/newsite/wp-content/uploads/2022/11/Pergola_Page_2.jpg)

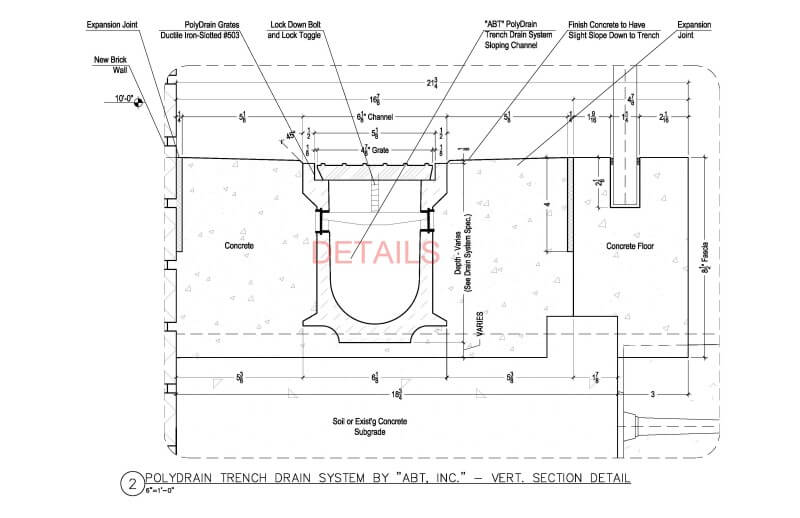

CONSTRUCTION DETAILS DRAWINGS
Details
![DETAILS_Page_1 ARCHITECTURAL DETAILS](https://cdstech.us/newsite/wp-content/uploads/2022/11/DETAILS_Page_1.jpg)

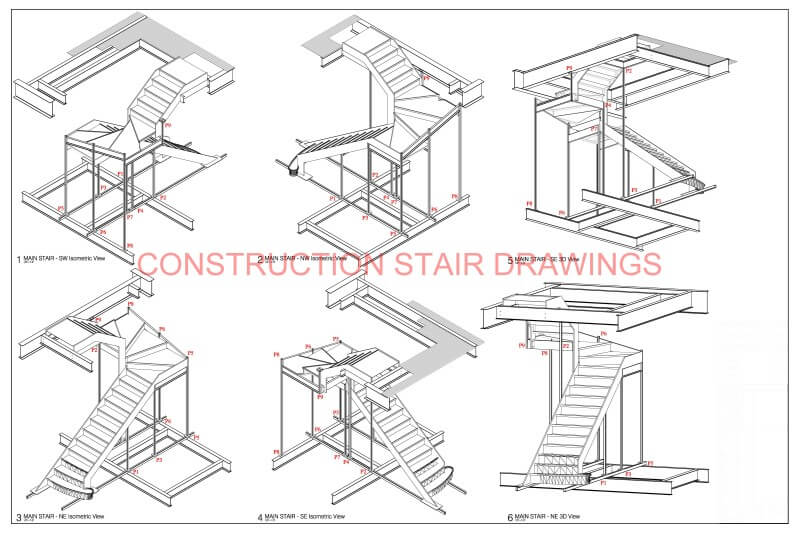

CONSTRUCTION STAIRS DRAWINGS
Stairs
![STAIRS 3D ARCHITECTURAL DETAILS](https://cdstech.us/newsite/wp-content/uploads/2022/11/STAIRS-3D.jpg)

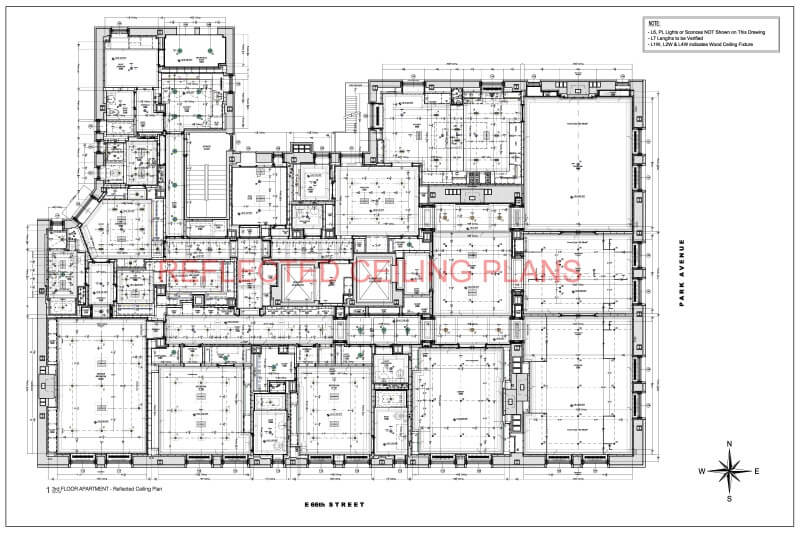

CONSTRUCTION RCP DRAWINGS
RCP
![640 RCP RCP](https://cdstech.us/newsite/wp-content/uploads/2022/11/640-RCP.jpg)

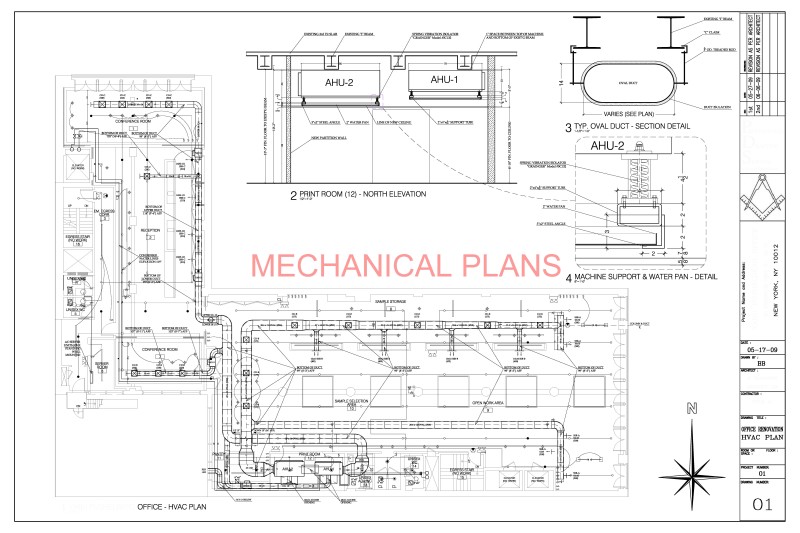

CONSTRUCTION MEP DRAWINGS
MEP
![MECHANICAL_Page_09 ARCHITECTURAL DETAILS](https://cdstech.us/newsite/wp-content/uploads/2022/11/MECHANICAL_Page_09.jpg)
Let’s Build Something
Nothing pleases us more than helping bring design changes and ideas to life.
